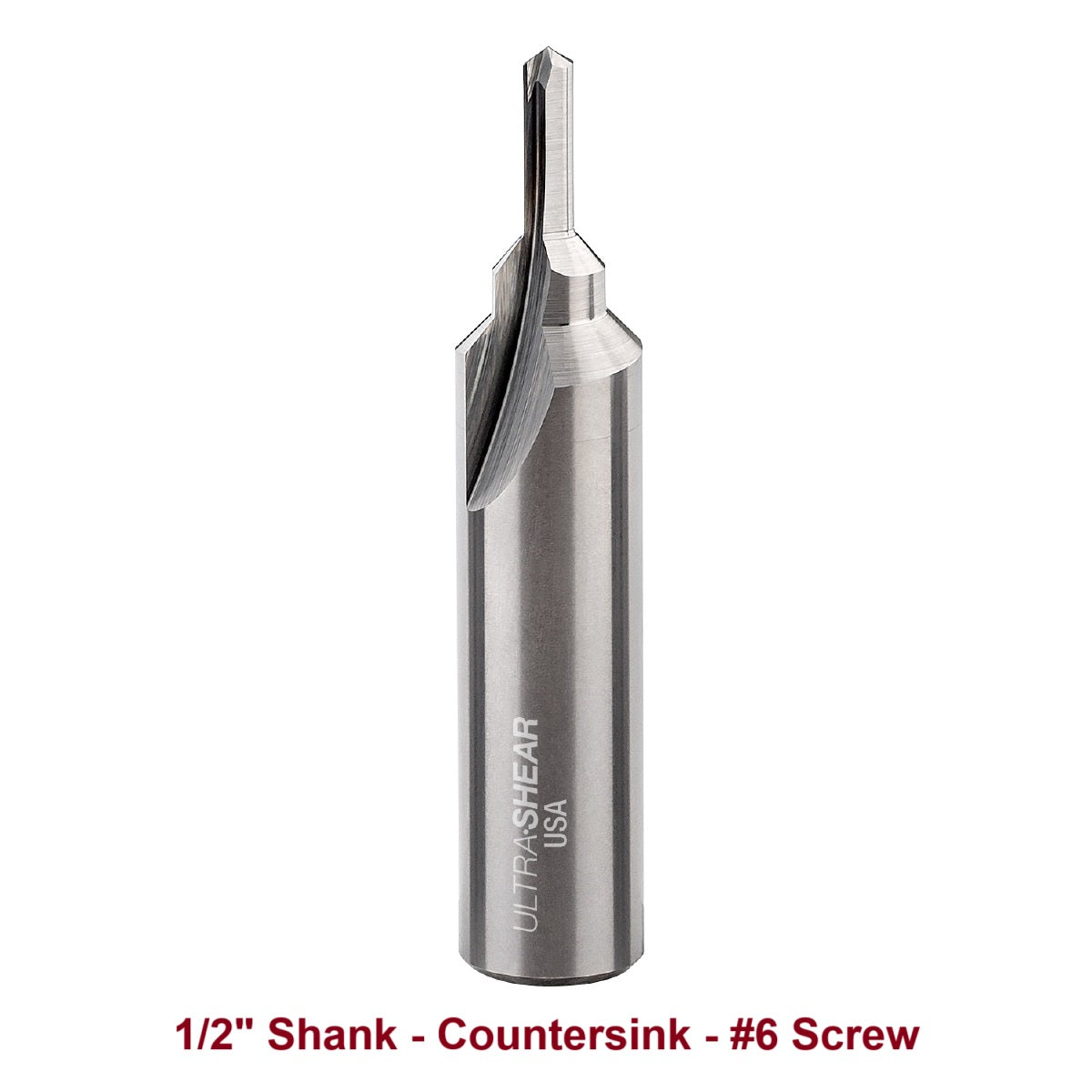

SPECS - US56CS | #6 Screw Size | 1/2" Shank | 2-1/2" Overall Length | 2 Flute | Solid Carbide | Countersink & Screw Slotting Router Bit | Made in USA

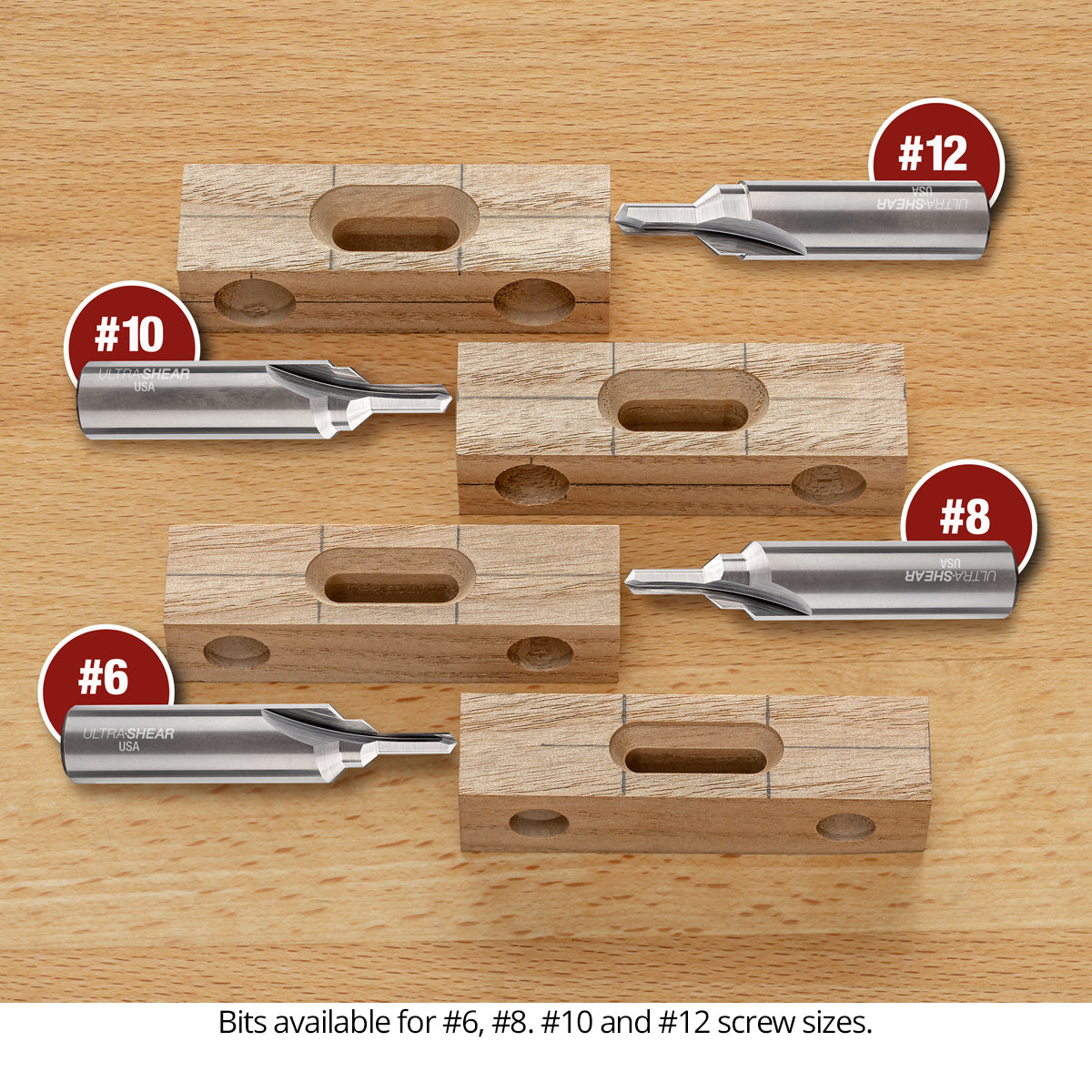

Countersink & Screw Slot Router Bits Size Chart
| Sku | Shank Size | Screw Size |
| US56CS | 1/2" | #6 |
| US58CS | 1/2" | #8 |
| US510CS | 1/2" | #10 |
| US512CS | 1/2" | #12 |
| US5CS-4PC | 1/2" | #6,#8,#10,#12 |
Ultra-Shear Countersink Slotting Router Bits
Precision and Versatility for Countersinking and Slotting

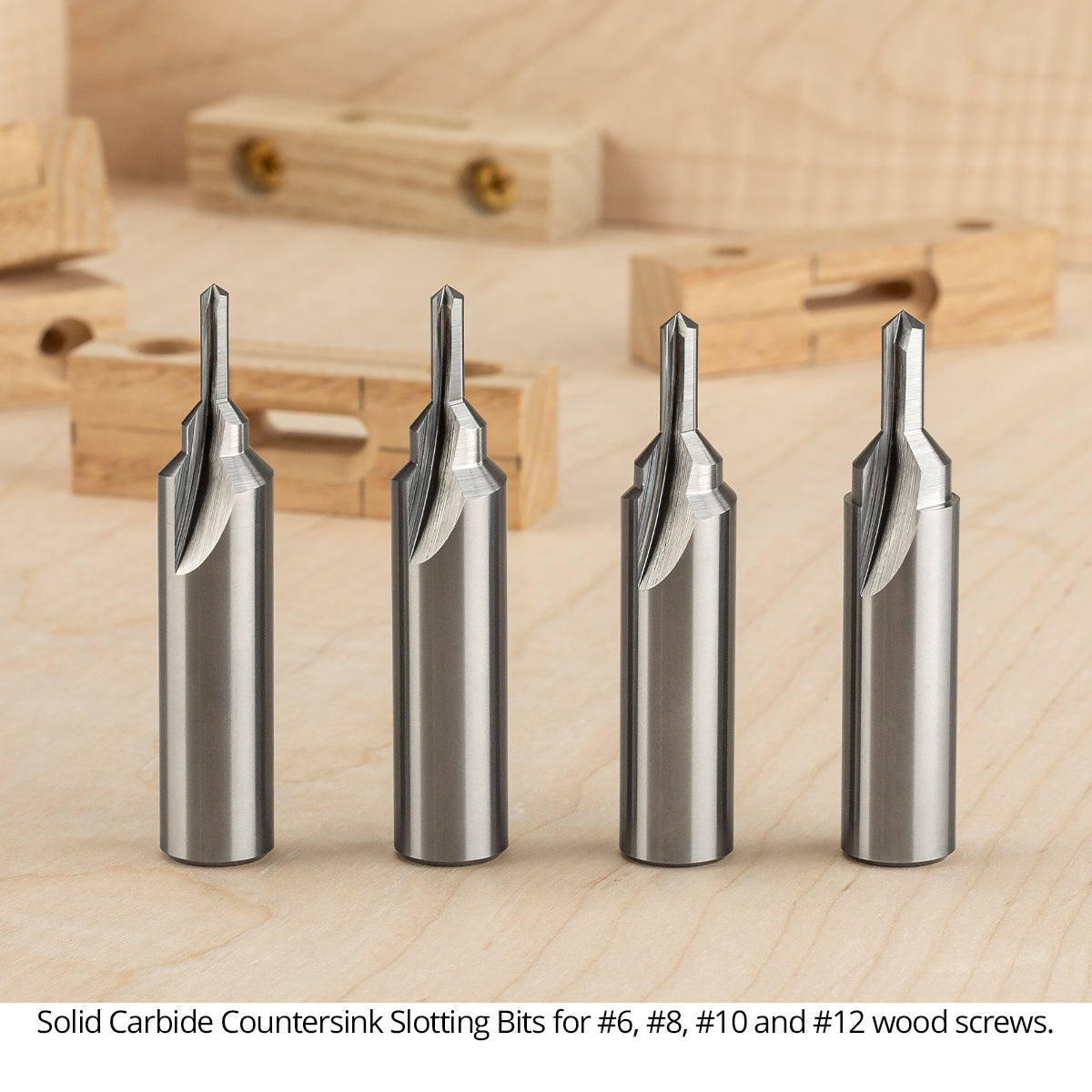

Ultra-Shear's Countersink Slotting Router Bits are designed to cut a countersunk pilot hole like a traditional countersink drill bit, but with the added capability of cutting sideways. This allows for the creation of slots that fit wood screws and accommodate the expansion and contraction of wood. Available in sizes for #6, #8, #10, and #12 screws, these solid carbide bits deliver incredibly clean cuts and long-lasting performance, capable of handling thousands of screw blocks.
Versatile Applications

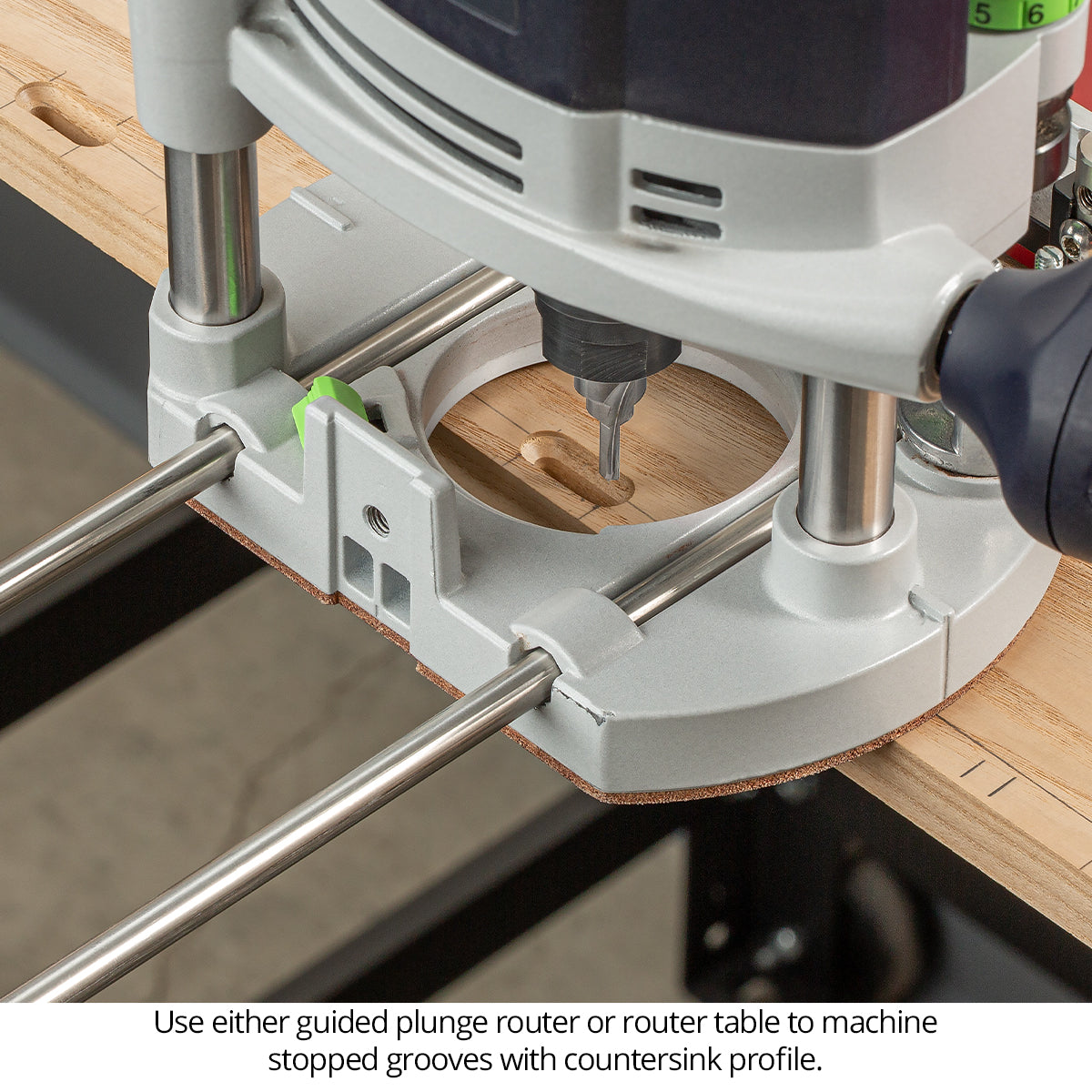

These countersink bits excel in both router tables and plunge routers with fences. They simplify and speed up the process of making multiple screw blocks at once, with the slot length adjustable based on the wood species and board width. You can even use them in a drill press to drill pilot holes for connecting aprons.
Ideal for Multiple Uses

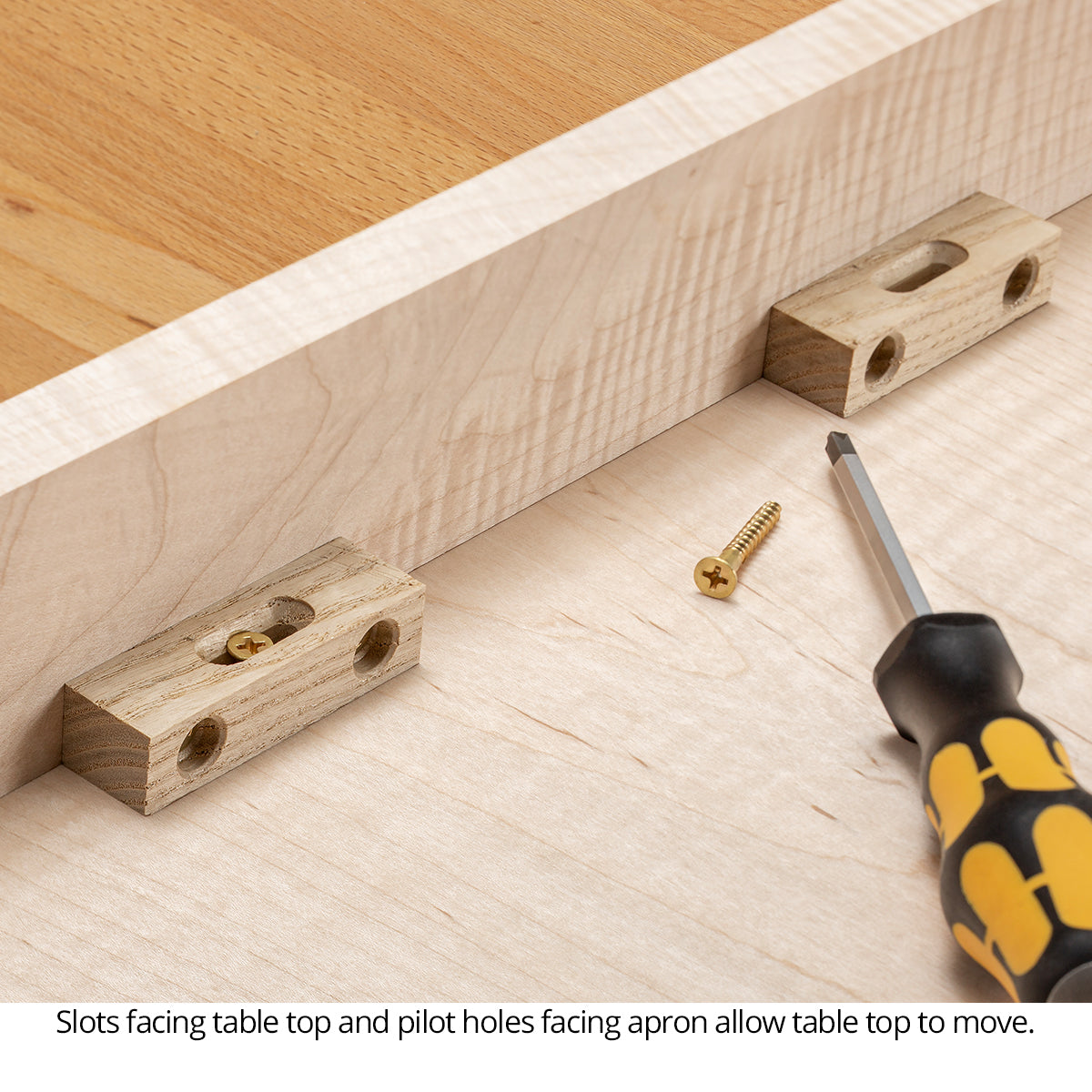

While table-to-apron screw blocks are the most obvious application, these bits are versatile enough to be used anywhere a countersunk slot that allows movement is needed. Their ability to cut laterally as well as straight in makes them a valuable addition to any woodworking shop.
American Made Quality
Ultra-Shear Solid Carbide Countersink Slotting Router Bits are manufactured in Woodpeckers' Strongsville, Ohio facility. By using state-of-the-art CNC grinding equipment and the highest quality solid carbide blanks, we ensure our bits provide superior performance and durability.
Proudly Made in the USA
All Ultra-Shear products, including the Countersink Slotting Router Bits, are made in our Strongsville, Ohio facility. We take pride in our American-made products and are confident you won’t find better quality for less
