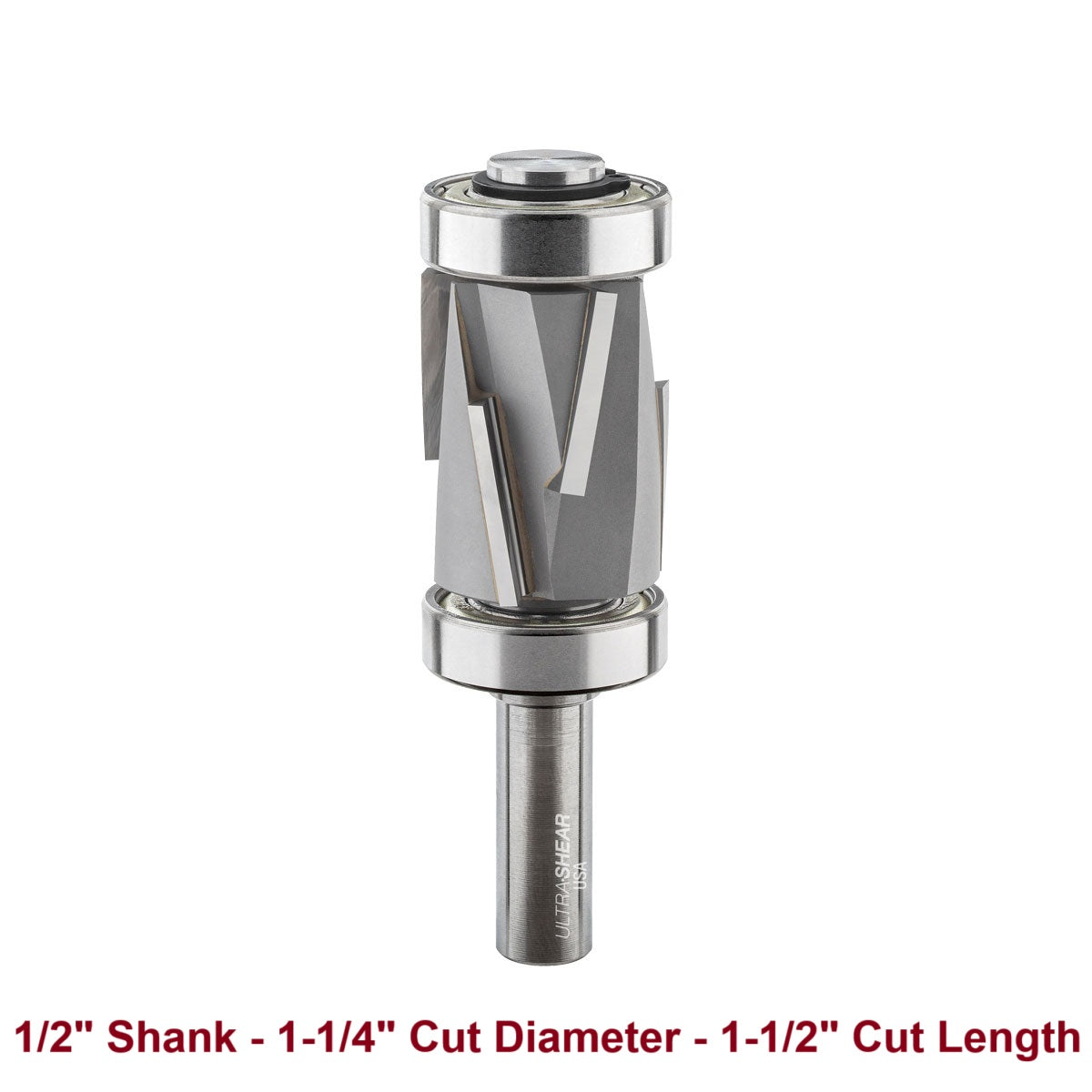

SPECS - US5312515C | 1/2" Shank | 1-1/4" Cut Diameter | 1-1/2" Cut Length | 4.170" Overall Length | Compression Template Pattern | 3 Flute | Carbide Tipped | Flush Trim Spiral Router Bit | USA Made
Template Pattern Flush Trim Router Bits Size Chart
| Sku | Shank Size | Cut Diameter | Cut Length |
| US531215C | 1/2" | 1-1/4" | 1-1/2" |
| US531220C | 1/2" | 1-1/4" | 2" |
| US5312C-2PC | 1/2" | 1-1/4" | 1-1/2" & 2" |
Ultra-Shear Jumbo Compression Router Bits – Precision Pattern Routing on a Larger Scale
When working with furniture parts and large-scale templates, a standard flush trim bit might not cut it—literally. The Ultra-Shear Jumbo Compression Router Bit delivers exceptional performance in pattern routing, featuring a 1-1/4" cutting diameter that steps over minor imperfections in your template for smoother, cleaner results and less sanding.
With bearings above and below the cutter, this bit allows you to follow your pattern from either side of the workpiece, ensuring operator safety and flawless cuts from every angle. The compression cutting geometry minimizes tear-out, making it an excellent choice.
Cleaner Cuts, Faster Routing, Less Sanding
- Double-Bearing Design: Cut with the pattern on top or bottom for maximum flexibility.
- Compression Shear Geometry: Up-cut and down-cut edges work together to eliminate tear-out.
- Large Cutting Diameter (1-1/4"): Steps over minor pattern flaws for smoother results.
- Two Cut Length Options: Available in 1-1/2” and 2” cut lengths to match your project needs.
Follow These Pro Tips for Pattern Routing Success
- Feed into the rotation of the router bit for safe, controlled cutting.
- Cut downhill whenever possible to avoid grain tear-out.
- Flip your workpiece to switch between top and bottom pattern-following for perfect results on all four quadrants.
American-Made Quality at Factory-Direct Prices
Like all Woodpeckers products, the Ultra-Shear Jumbo Compression Router Bit is proudly made in Strongsville, Ohio
