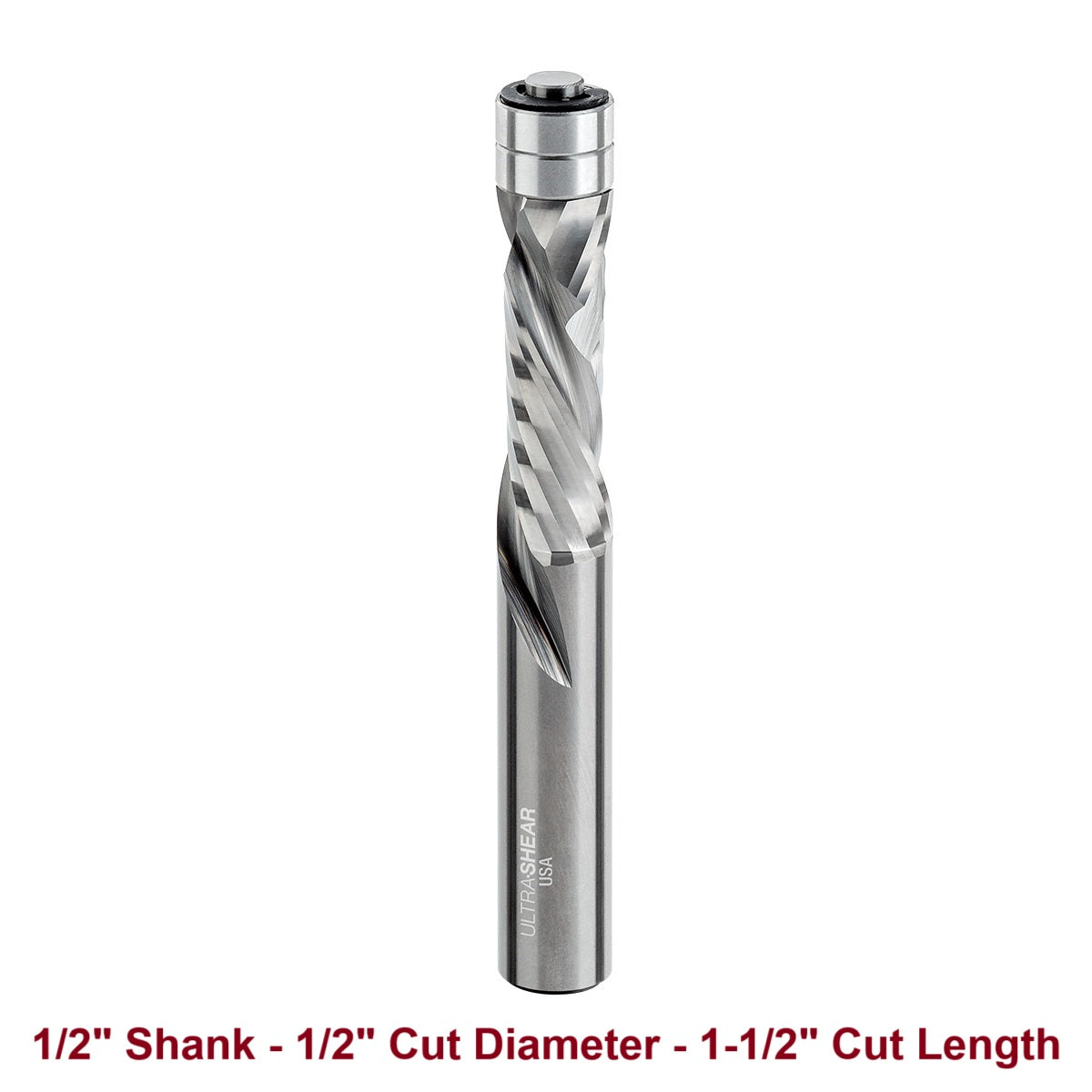

SPECS - US5152FTC | 1/2" Shank | 1/2" Cut Diameter | 1-1/2" Cut Length | 4" Overall Length | Compression Up & Down Cut | 2+2 Flute | Solid Carbide | Flush Trim | Twin Bearing | Spiral Router Bit | USA Made
Template Pattern Flush Trim Router Bits Size Chart
| Sku | Shank Size | Cut Diameter | Cut Length |
| US5202FTC | 1/2" | 1/2" | 1-1/2" |
| US5152FTC | 1/2" | 1/2" | 2" |
Ultra-Shear Template Pattern Flush Trim Router Bits
Ultra-Shear Solid Carbide Spiral Compression Flush Trim Router Bits, featuring a 1/2” shank and 1/2” cut diameter with 2 flutes. Crafted with top-quality American-made solid carbide, these router bits are available in two different cut lengths, ensuring you find the perfect fit for your project needs. Designed to follow a pattern or trim material flush with mating surfaces, these bits utilize a unique twin-bearing pilot that delivers superior performance, leaving surfaces needing minimal sanding.
Up-Cut bits evacuate the shavings most efficiently, but can chip the top edge of the cut in plywood and other man-made materials. Down-Cut bits leave a beautiful edge on the top surface, but can tear out the bottom edge. Our Compression Bits combine the best of both. The first 3/8" is up-cut with the remaining cutting length down-cut. The shearing action is always toward the center of your material. Whether working with tight corners or delicate materials, our bits provide exceptional results.
Proudly Made in the USA
All Ultra-Shear Solid Carbide Spiral bits are manufactured in Woodpeckers' Strongsville, Ohio facility. We take pride in our American-made products and are confident you won’t find better quality for less.
Recommended RPM
16,000 - 18,000 (max 24,000)
