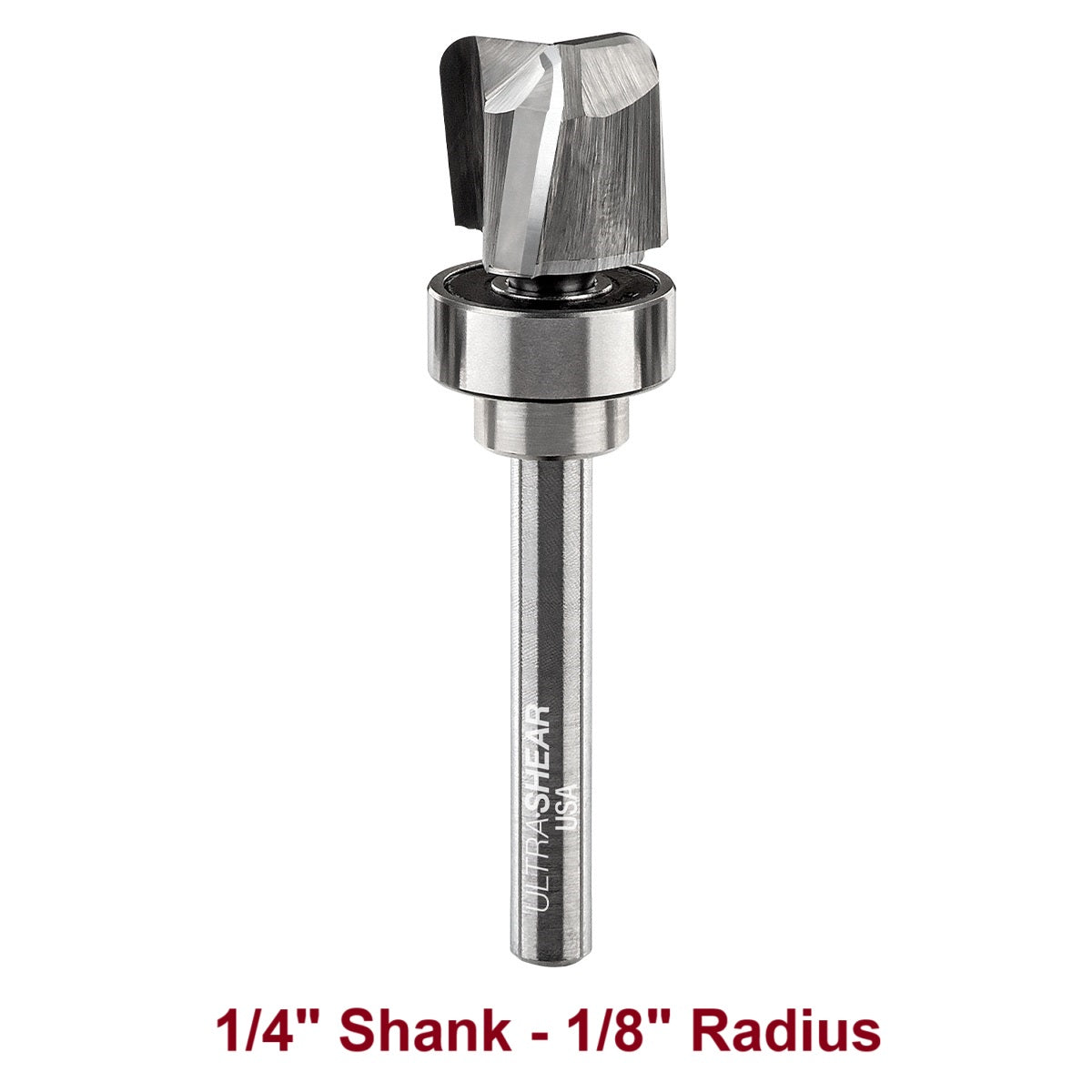

SPECS - US27125BD | 1/8" Radius | 1/4" Shank | 3/4" Cut Diameter | 5/8" Cut Length | 2-3/8" Overall Length | 3 Flute | Carbide Head | Made in USA
Deep Reach Bowl & Tray Router Bit Chart
| Part # | Shank Size | Radius | Cut Diameter | Cut Length | Overall Length |
| US27125BD | 1/4 | 1/8 | 3/4 | 5/8 | 2-3/8 |
| US27188BD | 1/4 | 3/16 | 3/4 | 5/8 | 2-3/8 |
| US27250BD | 1/4 | 1/4 | 3/4 | 5/8 | 2-3/8 |
| US27BD-3PC | 1/4 | Set | 3/4 | 5/8 | 2-3/8 |
| US57125BD | 1/2 | 1/8 | 3/4 | 5/8 | 2-7/8 |
| US57188BD | 1/2 | 3/16 | 3/4 | 5/8 | 2-7/8 |
| US57250BD | 1/2 | 1/4 | 3/4 | 5/8 | 2-7/8 |
| US57BD-3PC | 1/2 | Set | 3/4 | 5/8 | 2-7/8 |
| US816163BD | 8mm | 3mm | 16mm | 16mm | 73mm |
| US816164BD | 8mm | 4mm | 16mm | 16mm | 73mm |
| US816165BD | 8mm | 5mm | 16mm | 16mm | 73mm |
| US81616BD-3PC | 8mm | Set | 16mm | 16mm | 73mm |
Ultra-Shear Deep Reach Bowl Router Bits
Deep Precision for More Intricate Projects
Ultra-Shear Deep Reach Bowl Router Bits are engineered for creating deeper recesses in your woodworking projects with ease and precision. With an overall length of 3", these bits provide a generous cutting depth, making them ideal for divided charcuterie boards, nightstand valets, coasters, desk organizers, holiday candy dishes, and more. Designed for versatility, Ultra-Shear Deep Reach Bowl Bits are available in three different shank sizes, ensuring compatibility with any router or CNC in your shop.
Multiple Options for Radius and Shank Sizes
The Deep Reach Bowl Bits come in a variety of configurations to suit your specific needs:

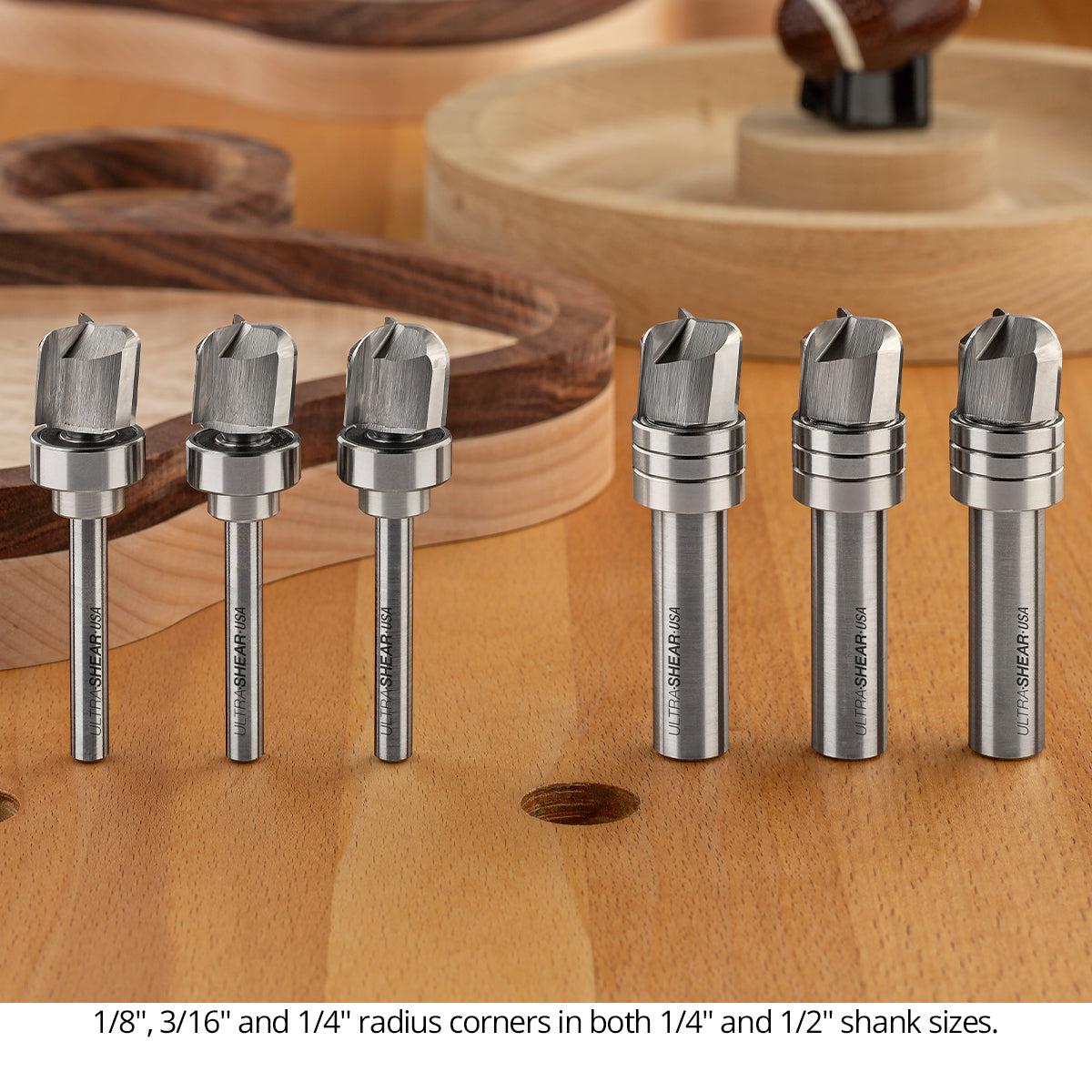

- 1/4" and 1/2" Shanks: Available with 3/4" cutting diameters and fractional radius corners of 1/8", 3/16", and 1/4".
- 8mm Shank: Compatible with Shaper Origin and European routers, we offer 16mm cutting diameter bits with corner radii of 3mm, 4mm, and 5mm.
Pattern Work Made Easy

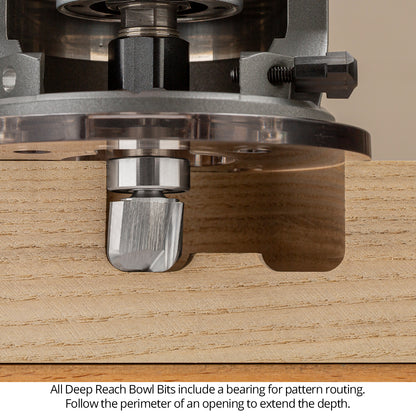

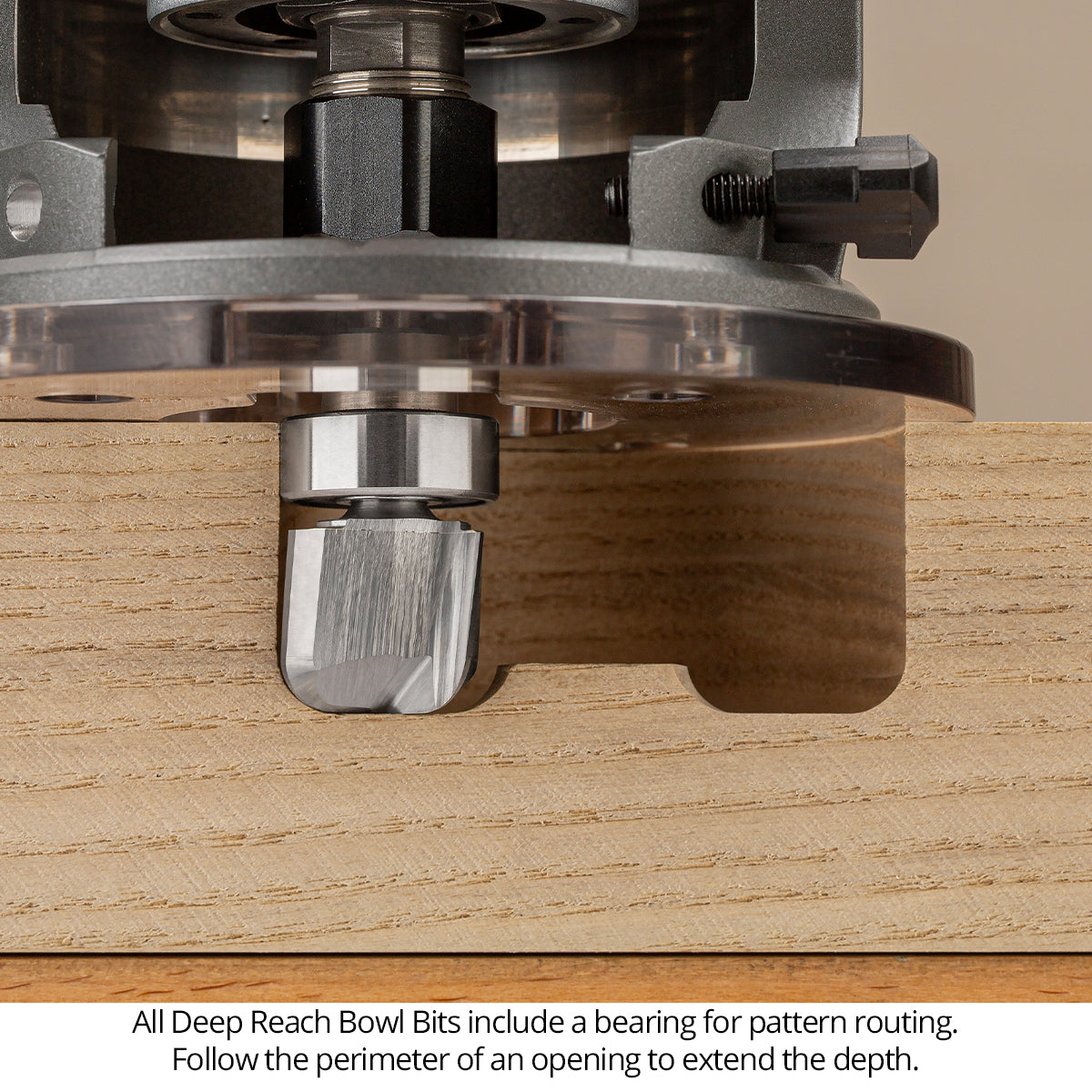

Ultra-Shear Deep Reach Bowl Bits are equipped with pattern-following bearings, allowing you to use commercially available templates or create custom patterns with ease. The "what you see is what you get" design ensures that your project exactly mirrors the shape and size of your template, with no offset issues like you might encounter with guide bushings. For CNC users, the bearings can be removed in seconds, making these bits perfect for automated setups as well.
Innovative Design for Superior Cutting Performance

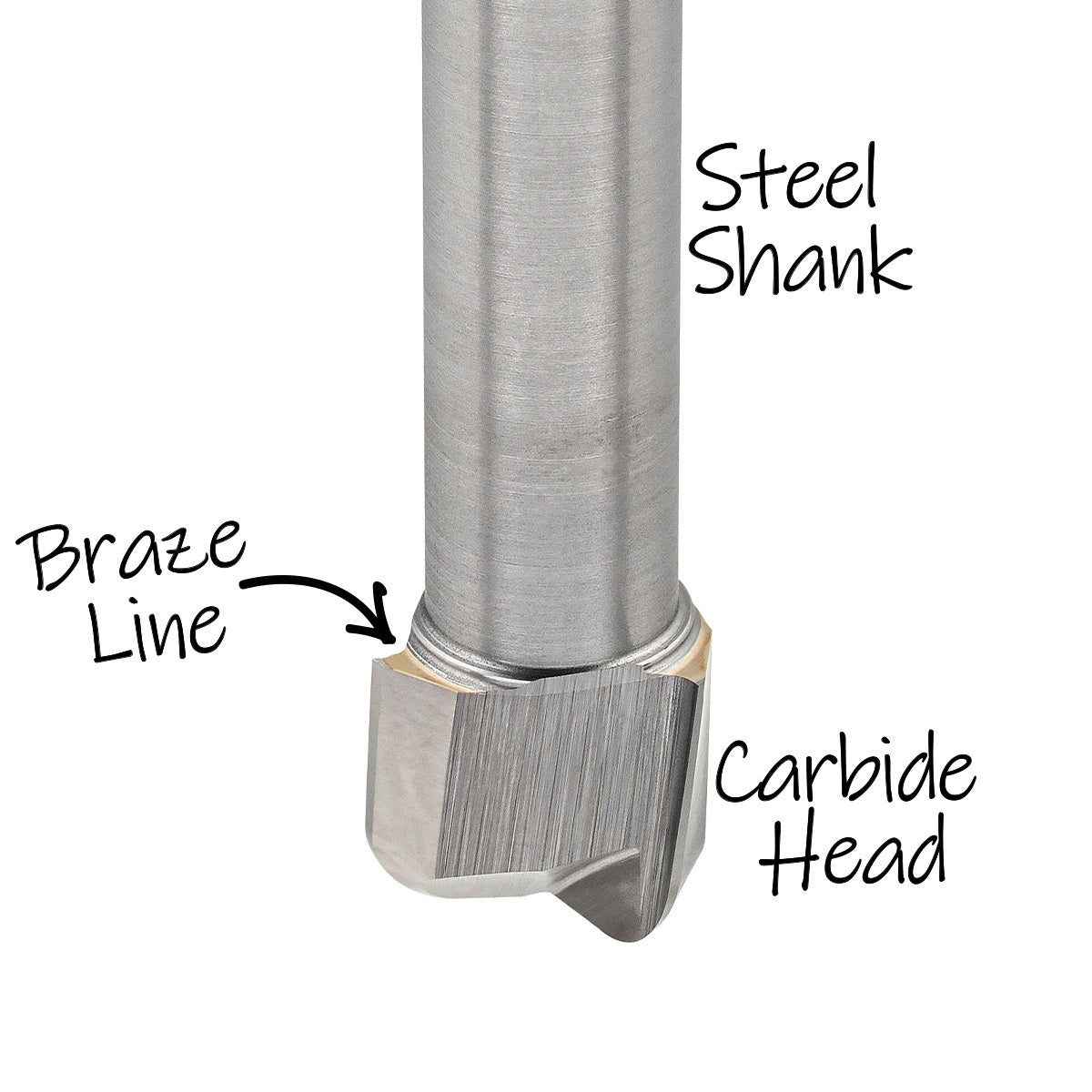

Ultra-Shear uses a hybrid design technique borrowed from the metalworking industry to create these bowl bits. Instead of grinding down large amounts of solid carbide (a wasteful and time-consuming process), Ultra-Shear brazes a solid carbide head onto a steel shank, then grinds the entire assembly as one unit. This results in perfect concentricity, superior cutting geometry, and optimal cutting performance without the high costs associated with traditional carbide bits.
Built for a Wide Range of Projects
With Ultra-Shear Deep Reach Bowl Router Bits, you’re not limited in creativity. Whether you’re making custom charcuterie boards, decorative trays, or functional desk accessories, these bits are designed to give you the precision, depth, and smoothness you need to achieve professional results.
American Made Quality
Like all Woodpeckers products, Ultra-Shear Deep Reach Bowl Router Bits are manufactured in our Strongsville, Ohio facility, just south of Cleveland.
Recommended RPM
Range: 16,000 - 18,000 (max 24,000)
